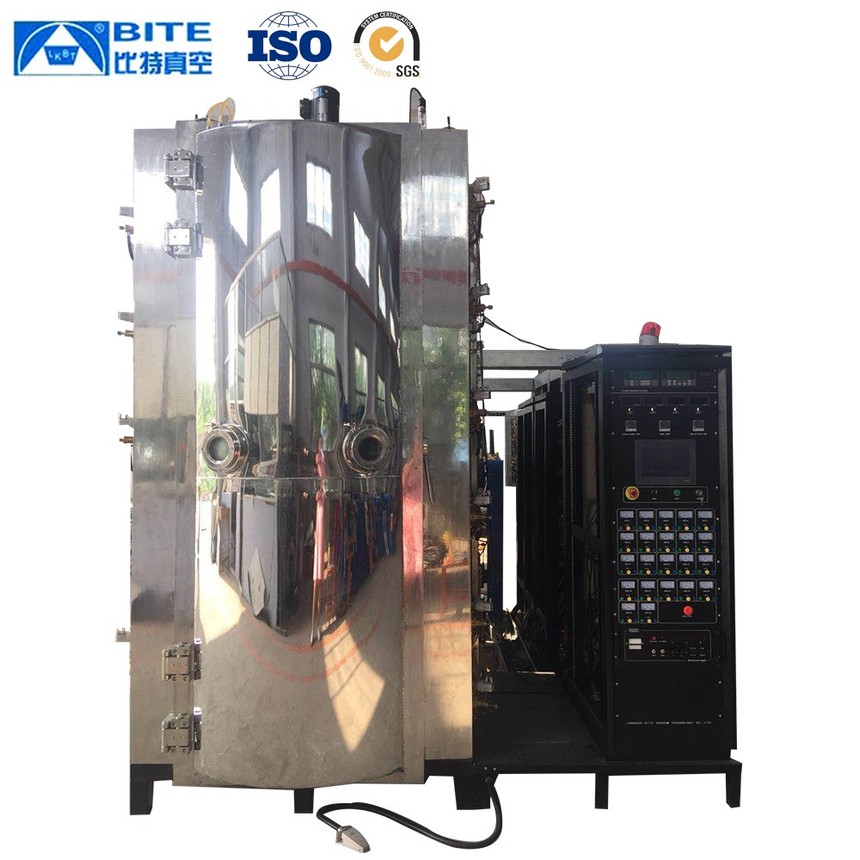

PVD coating machine for Watches, Jewellery
Equipment explanation:
Magnetron sputtering coating machine (PVD) is to adapted to the clients' needs of plating system a variety of complex membrane system and design, suitable for metal, ceramics, glass, crystal, etc material surface plating system all sorts of color nanometer coating.
Film quality outstanding, functional diversity, widely used in watch, glasses, mobile phones, information products, hardwares, glass, ceramics, building materials, and other industries surface plating system all sorts of adornment membrane.
It's an ideal eqiupment for plating IP imitation gold, IPS, IPC, IP gun, IP black, IP coffee, IP rose, IP blue, champagne gold, gan yi color film and so on.
Main features:
1, deposition rate quickly, the temperature rise is small, can better inhibition flint and target poisoning phenomenon;
2, sputtering release membrane layer of high energy density and adhesion have increased significantly;
3 + PLC, touch screen, and can realize automatic control, automatic/manual switch at any time;
4, workpiece frame using public and rotation structure, can be set to be automatic and reversing, product uniformity good;
5, can effectively avoid reverse oil phenomenon, extraction rate fast, low noise, low consumption,
6, can according to the customer request with many sets of target source.
| Parameters | Model No. | Quantity |
The structure of the vacuum chamber | Vertical front door , Double or cooling tank cooling |
|
|
dimension of vacuum chamber | 900×1000 |
| 1 |
pumping speed | 1×105Pa~3×10-3Pa≤15min |
|
|
limit vacuum | ≤8×10-4Pa |
|
|
system form a complete set | Maintaining the pump | 2X-15 | 1 |
Mechanical pump | 2X-70 | 1 |
Diffusion pump | KT-500 | 1 |
roots-type pump | ZJP-300 |
|
workpiece system | Rotation of the planet forms(8 roating shaft, since the amount) |
| 8 |
heating methods | Edge installation of stainless steel heating tube |
| 4 |
ion bombardment | 20KW inverter bias | PLS-20KW | 1 |
Arc target | 40-200A adjustable | TIG-250 | 3 |
magnetron target amount | one plane target or Cylindrical target |
| 2 |
Magnetron power | 30KW IF power | MF-30KW | 1 |
working methods | PLC semi-auto control or PC+PLC auto control |
|
|
working gas | Ar N2 O2 |
|
|
total power | 40KW |
|
|
compress air | 0.4~0.8MPa |
|
|
water-cooling system | hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself) |
|
|
